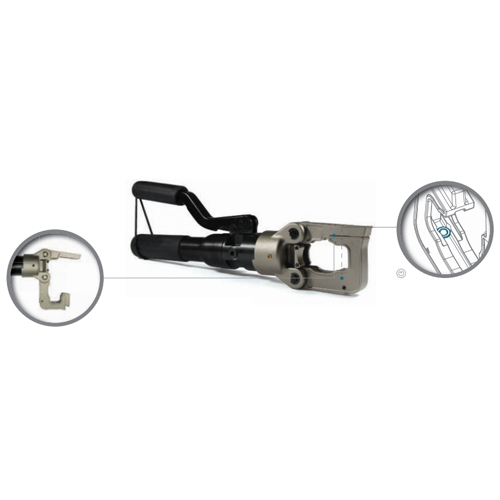

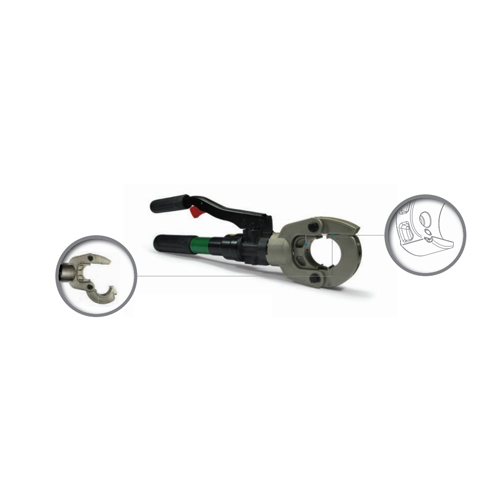

Manual Hydraulic Crimping Tool 6 - 400 mm²

The C130 NEO Manual Hydraulic Crimping Tool is designed for high-performance pressing in low/medium voltage installations, electrical panel manufacturing, and field assembly. It features a 130 kN crimping force and offers stroke variations of 26 mm, 32 mm, and 38 mm to suit different application needs. It delivers the same force, range of motion, and crimping capacities as the XC130-xx, BPE130, and BPP130x cordless models with XC130-xx heads.

Thanks to its advanced 2-stage hydraulic system, it provides rapid approach in the idle state, while the mechanical stop mechanism automatically terminates piston movement upon completion of the operation. With 14 sets of crimping dies included, it covers a wide application range from 6 mm² to 400 mm². It ensures secure and low-resistance connections for copper lugs and sleeves conforming to NFC 20-130 standards, for bare/insulated conductors in EDF norm (E54 > E280), for connectors DIN 48083 (KZ6 > KZ38), and for C-type connectors.
